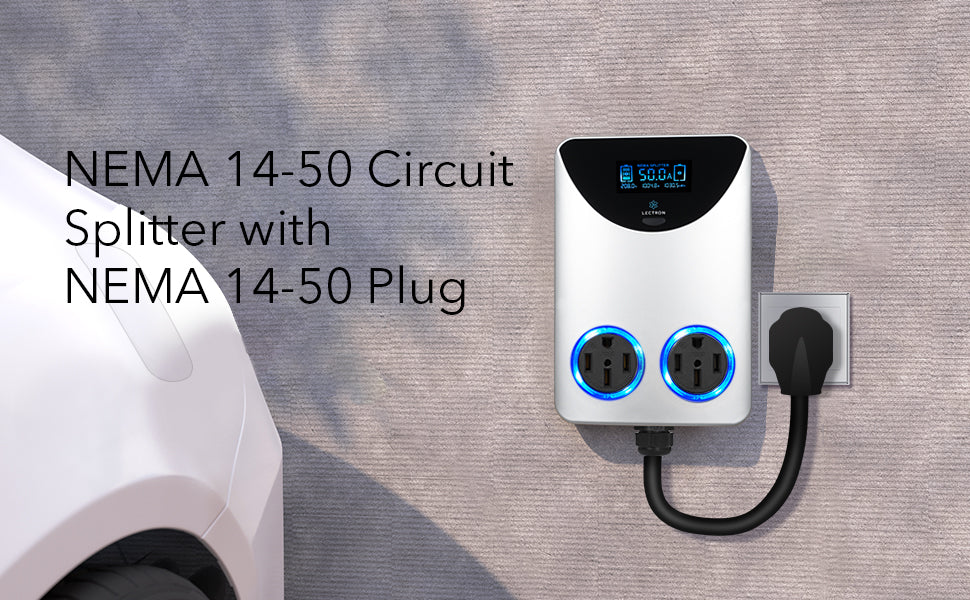

NEMA Socket Splitter
14-50 and 10-30 Plug
NEMA Socket Splitter - NEMA 14-50 is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
Free Shipping
Charging Reference Table
| EV Charger Amps | EV Charger Output | Minimum Breaker | Full Charge | Driving Range Added Per Hour |
|---|---|---|---|---|
| 16 Amps | 3.8 kW | 20 Amps | 16 to 23 hours | 11 to 13 miles |
| 24 Amps | 5.8 kW | 30 Amps | 10 to 16 hours | 17 to 19 miles |
| 32 Amps | 7.7 kW | 40 Amps | 8 to 12 hours | 22 to 25 miles |
| 40 Amps | 9.6 kW | 50 Amps | 6 to 9 hours | 26 to 28 miles |
| 48 Amps | 11.5 kW | 60 Amps | 5 to 8 hours | 28 to 30 miles |
| 50 Amps | 12.0 kW | 80 Amps | 5 to 8 hours | 28 to 31 miles |
Overview
COMPATIBLE NEMA SOCKETS: This Lectron NEMA Socket Splitter has a NEMA 10-30 inlet plug, a NEMA 10-30 primary socket, and a NEMA 10-30 secondary socket.

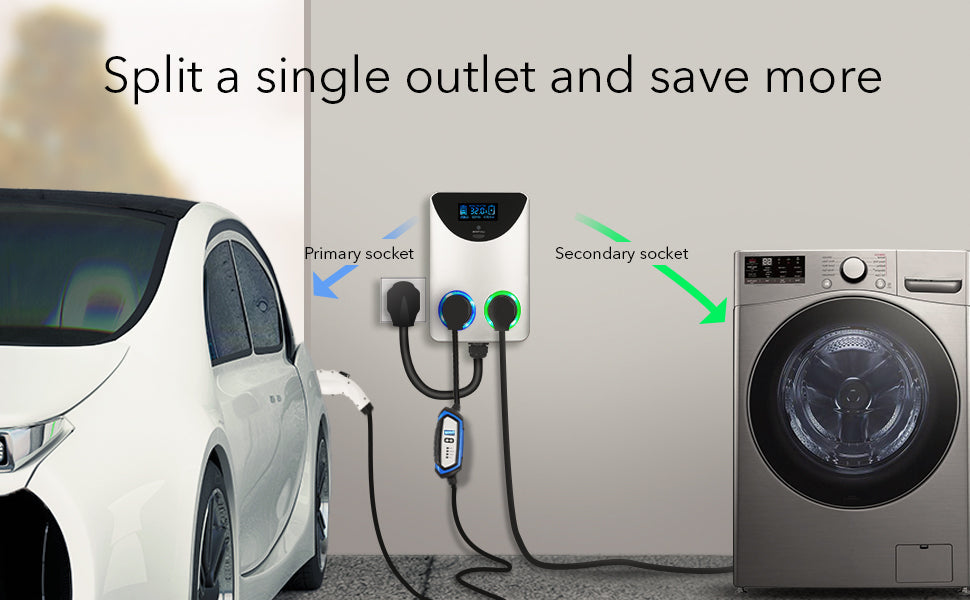

CHARGE MORE CONVENIENTLY: This Lectron EV power splitter lets you use one outlet to power your Level 2 EV charger and high-powered appliance (washer, dryer, etc) - eliminating the need to install a second high-powered NEMA outlet in your home.
NO INSTALLATION COST: This Lectron outlet splitter saves you money by avoiding the high cost of installing another high-powered NEMA outlet to handle your EV charger.
SAFETY AND RELIABILITY ASSURED: The Lectron NEMA 10-30 splitter prioritizes safety with its ETL certification and built-in safeguards against overvoltage, overcurrent, and short circuits.

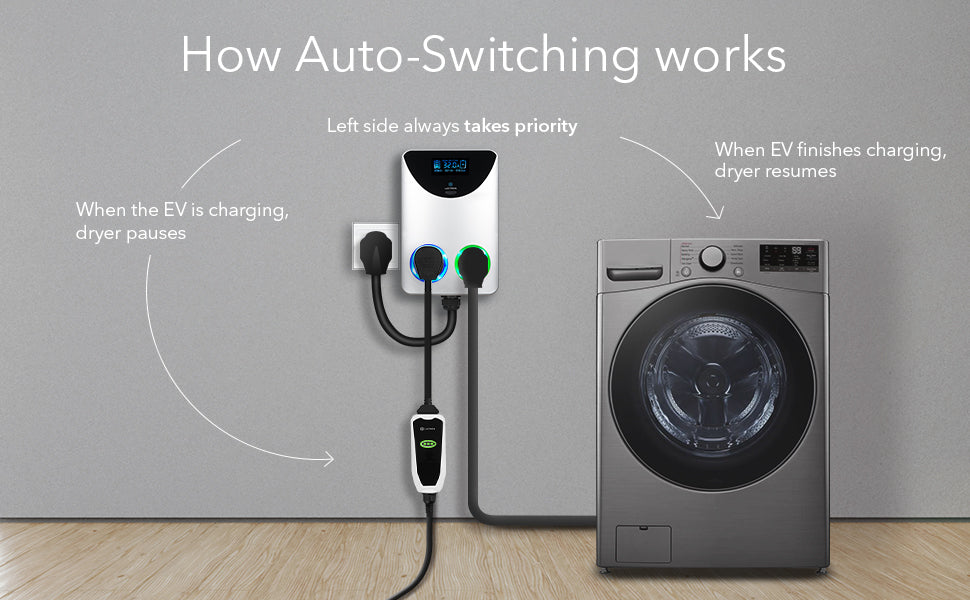

PRIORITIZED POWER SUPPLY: The NEMA socket splitter only sends power to one terminal at a time, and switches once the EV plugged into the charger in the primary socket is fully charged.
